    17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution

    Ask Lasest Price
    Brand Name : HONGNUO
    Model Number : HN-1701PMIM
    Certification : 3C, FCC, CE, ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : 5-10 work days upon payment
    • Product Details
    • Company Profile

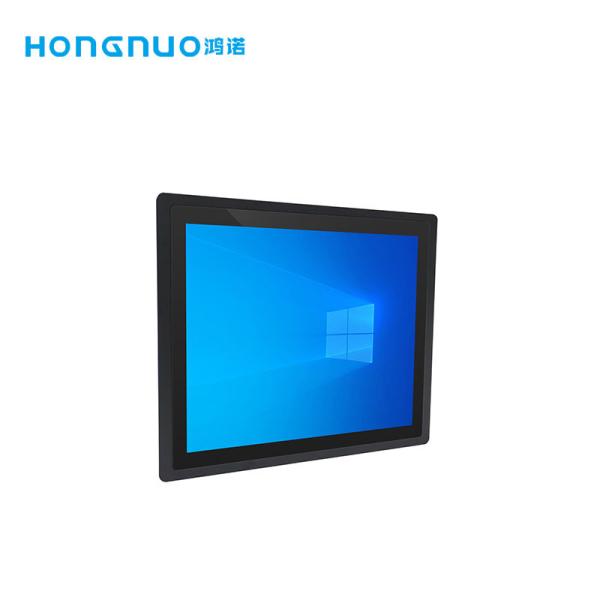

    17 Inch Panel Mount Industrial Monitor 300 Nits 1280×1024 Resolution

    HONGNUO 17 Inch Outdoor Mount Capacitive Touch Monitor

    Industrial Touchscreen Monitor


    Main feature

    1. Aluminum alloy case, front IP65 waterproof and dustproof.

    2. Industrial LCD panel, wide viewing angle, high nits, true color.

    3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.

    4. High performance mainboard, 7x24 continuous operation.

    5. Wide temperature range: operating: 0 to 60°C, storage: -20 to 75°C.

    6. Support wall mounting, embedded mounting, desk stand mounting etc.

    Specification

    17 inch

    Display Scale

    4:3

    Backlight Type

    LCD

    Resolution Ratio

    1280*1024

    Pixel Size

    0.2745mm*0.2745mm

    Brightness

    300cd/㎡

    Chroma

    16.7M

    Response Time

    Typ.6ms

    Contrast

    1000:1

    Visual Angle

    80°/80°/70°/70°

    Input Signal

    LVDS

    Backlight Life

    50000h

    Material

    aluminium alloy front bezel + High strength cold rolLCD steel back case

    Touch Screen

    Touch Type

    Projective capactive touch screen

    Touch Surface

    Lucency

    Points

    Support 10 points

    Touch Mode

    Fingers/Pen touch

    Resolution Ratio

    4096*4096

    Response Time

    ≤10ms

    Single Point Operation

    Windows XP,Linux

    Multipoint Operation

    Windows7/8/10,Android

    Life Span

    Single click touch life≥50 million

    Window System

    Processor

    Intel Baytrail J1800

    CS

    Intel ®SOC

    Display Chip

    Intel ®HD Graphics integrated graphics

    Display Output

    VGA,LVDS,HDMI

    USB

    1*USB3.0,8*USB2.0

    Internal Storage

    1*SO-DIMM DDR3L 1333HMz Max8GB

    Cooling System

    Support

    WIFI

    1*Mini-PCIE(for WIFI+Bluetooth Card )

    Operating Temperature

    0~60℃

    Storage Temperature

    -20~75℃

    Custom Designs

    HONGNUO is an OEM / ODM factory, customizing your products to tailor your needs is our strength. Our team of designers , software engineers and structure engineers will make sure to render your imagination into actual products!

    factory production + software development + ID design + structural design, etc. These teams belong to our own.

    FAQ

    Q1:Can you provide OEM/ODM service for the industrial monitor?

    A: Yes,well supported.We can customize it according to your requests.


    Q2:Do you have stock?

    A:We keep 2000-5000 units in Stock every single Month.


    Q3: Is your company a real manufacturer?

    A: Our company is the professional manufacturer in SHENZHENG city, you are the mostly welcomed to visit our factory anytime.


    Q4: How is the quality of the product?

    A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic China market on line, our brand is “HONGNUO”.So quality is the first thing for us!


    Q5: Does the product only use for school?

    A: Our products are widely used in Hospital, School, office etc.


    Q6: How can I trust your product quality?

    A: We have more than 10 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by FCC CE & ROHS etc.


    Q7: What's your after-sale service?

    A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
